304 316 Stainless Steel Phillips Drive Serrated Hex Flange Bolts | DIN 6921

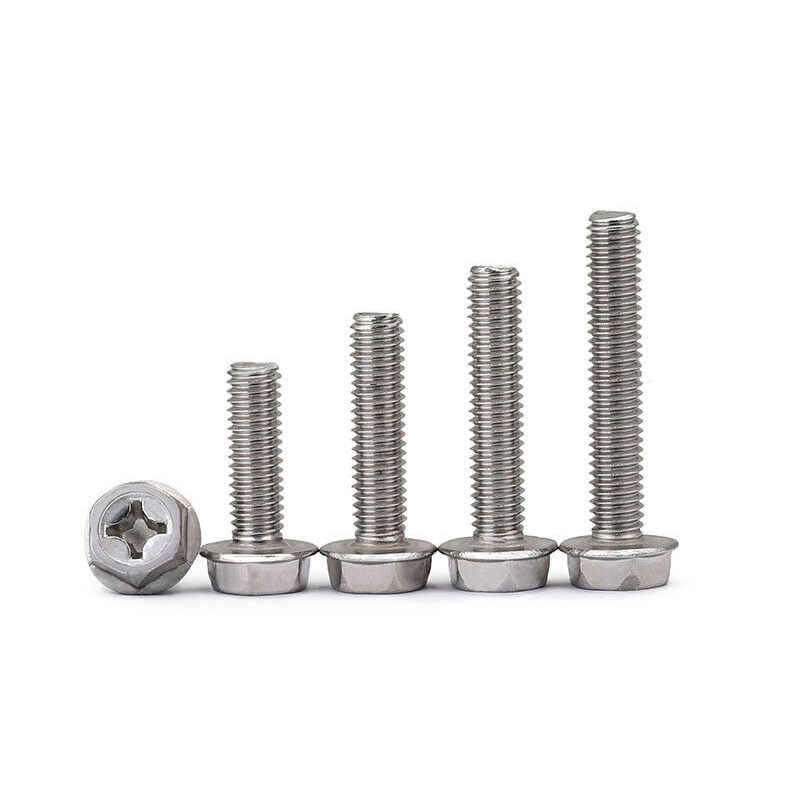

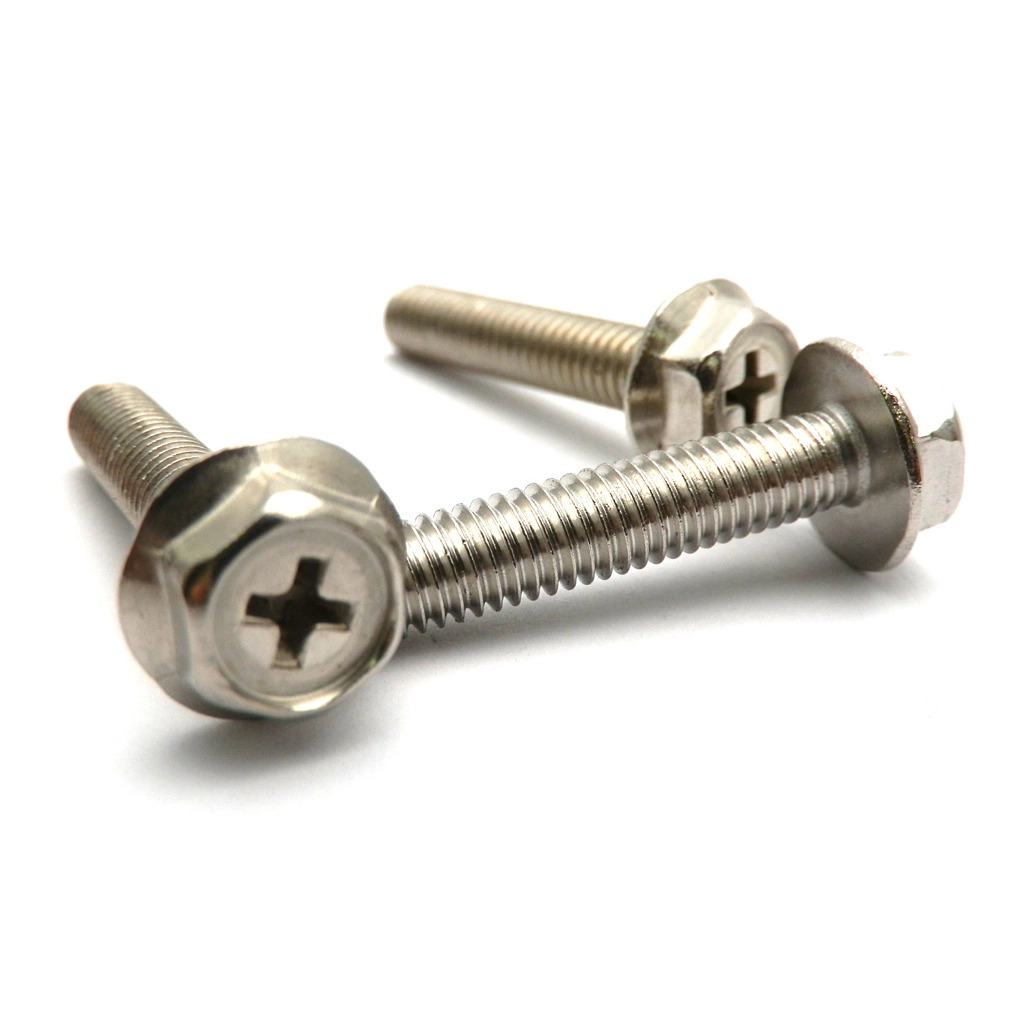

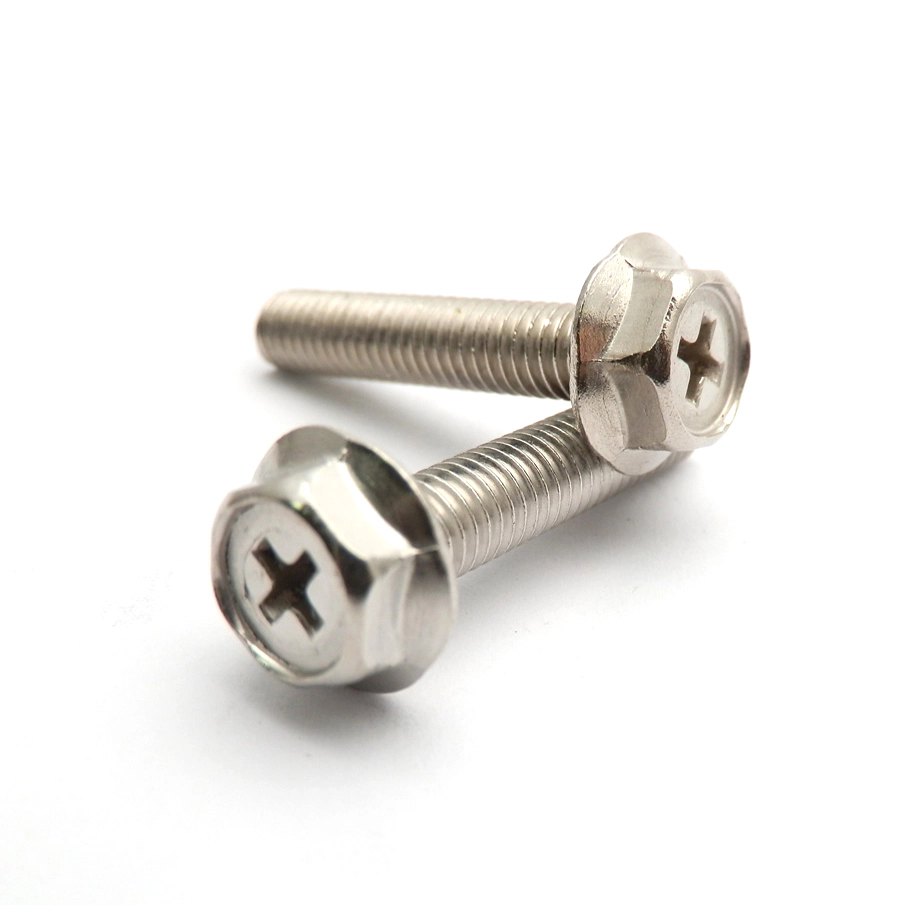

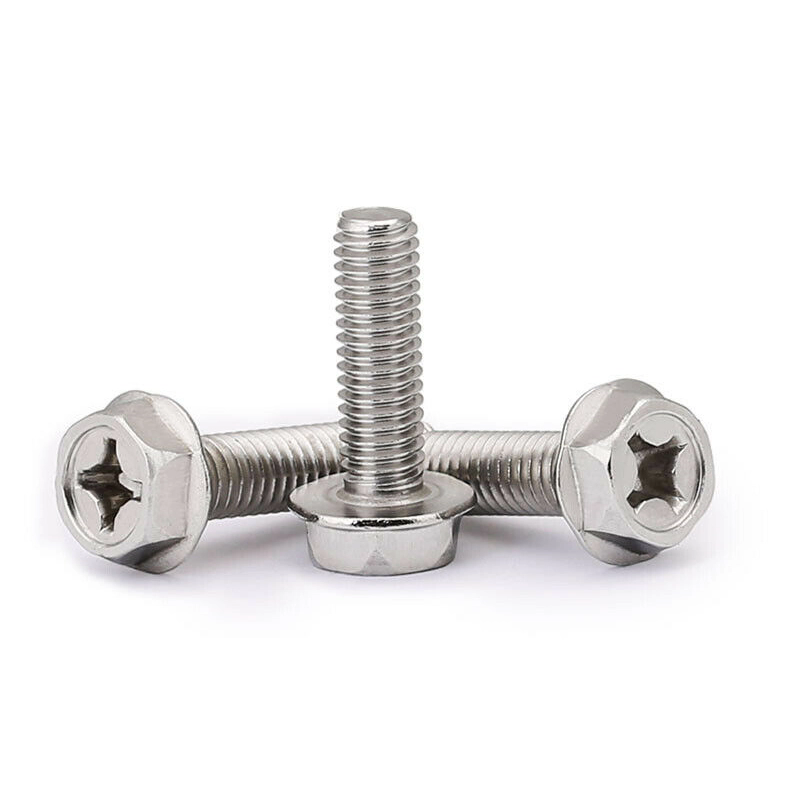

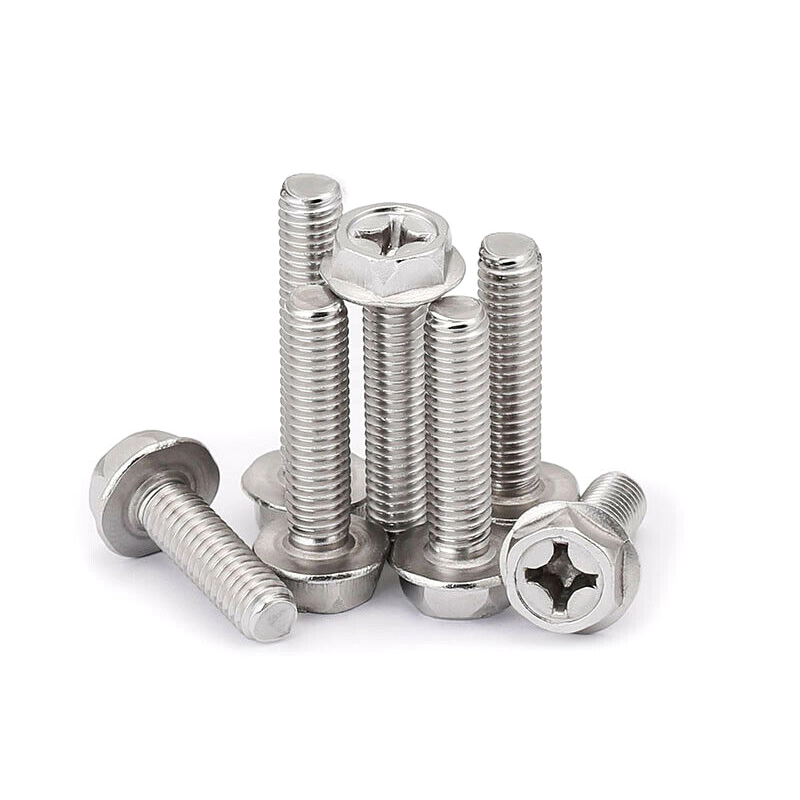

304 316 Stainless Steel Phillips Drive Serrated Hex Flange Bolts combine a Phillips drive with a hexagonal flange head. The integrated flange acts as a built-in bearing surface, while the serrated underside engages with the mating surface during tightening.
The Phillips drive allows convenient installation with a suitable Phillips tool, while the external hexagonal head can also provide an additional option for wrench-based installation where applicable.
Available in 304 and 316 stainless steel, these flange bolts are suitable for machinery, equipment assembly, automotive components, metal fabrication, construction equipment, and general industrial fastening applications.
Different sizes, thread specifications, and packaging options can be supplied according to customer requirements. OEM and customized specifications are also available.
Key Features of 304 316 Stainless Steel Phillips Drive Serrated Hex Flange Bolts
1. Phillips Drive Design
The Phillips drive allows convenient installation using a suitable Phillips tool.
2. Serrated Flange
The serrated underside engages with the mating surface during tightening and provides additional mechanical resistance to loosening.
3. Integrated Flange Head
The flange provides a wider bearing surface and distributes the fastening load over a larger area.
4. 304 & 316 Stainless Steel
Available in 304 and 316 stainless steel for applications requiring good corrosion resistance.

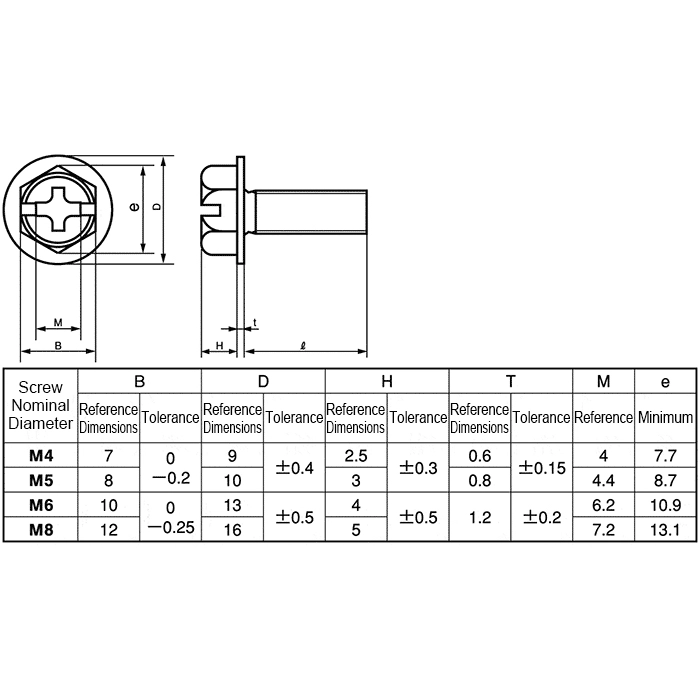

5. DIN 6921 Specification
Available according to DIN 6921 dimensions, with customized specifications available for specific requirements.
6. Wide Application Range
Suitable for machinery, automotive components, equipment assembly, metal fabrication, and industrial fastening.
